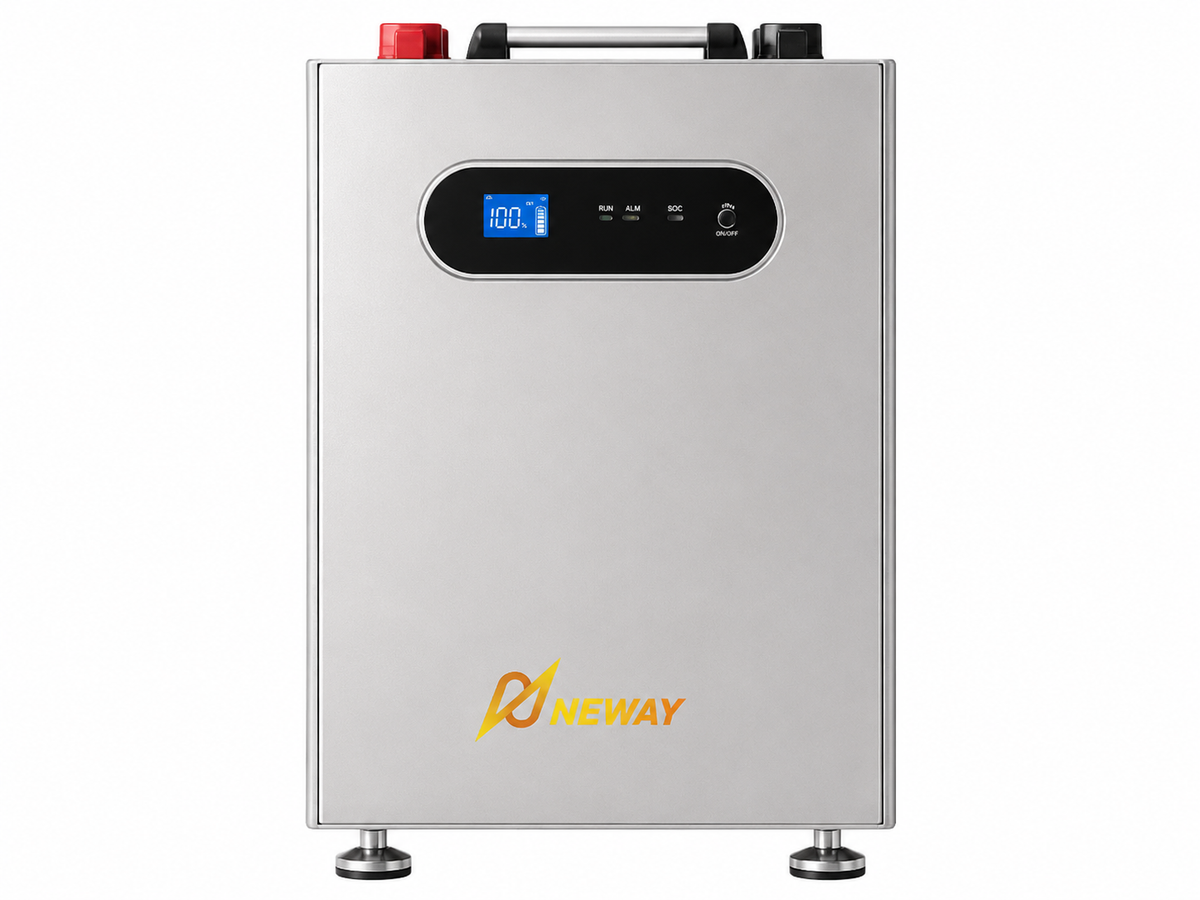

Neway LiFePO4 Battery Pack
Scalable energy storage for solar, backup power, and microgrid applications
Neway LiFePO4 battery packs provide safe, efficient, and scalable energy storage for solar PV systems, backup power, peak shaving, load shifting, and microgrid applications. Each 51.2 V 314 Ah battery provides 16.08 kWh of rated energy, with over 6,000 cycles, low self-discharge, and intelligent BMS protection for reliable long-term operation.
Key Features
Long Cycle Life
Over 6,000 cycles at 25°C and 90% DOD
Wide Temperature Range
Reliable discharge performance from −20°C to 60°C
Low Self-Discharge
Helps retain energy during extended storage
Comprehensive BMS Protection
Intelligent protection for safe and reliable operation
Technical Specifications
Compare key electrical specifications, system configurations, and expansion capabilities across available models.
|
Parameter
|
|
|
|
|---|---|---|---|
| Cell Chemistry | LFP | LFP | LFP |
| Rated Voltage | 51.2 V | 51.2 V | 51.2 V |
| Rated Capacity | 314 Ah | 314 Ah | 314 Ah |
| Single-Pack Rated Energy | 16.08 kWh | 16.08 kWh | 16.08 kWh |
| Operating Voltage Range | 44.8-57.6 V | 44.8-57.6 V | 44.8-57.6 V |
| Recommended Charge/Discharge Current | 157 A / 157 A | 157 A / 157 A | 157 A / 157 A |
| Multi-Unit Expansion Method | / | 2-16 units in series | 3-15 units in series |
| Expanded Voltage Range | / | 89.6-115.2 V (2 units) 716.8-921.6 V (16 units) |
134.4-172.8 V (3 units) 672-864 V (15 units) |
| Expanded Energy Range | / | 32.16-257.28 kWh | 48.23-241.15 kWh |
| Communication Interfaces | RS-485, RS-232, CAN | RS-485, RS-232, CAN | CAN |
| Cycle Life | > 6000 cycles (0.5C, 25 °C, 90% DOD) |
> 6000 cycles (0.5C, 25 °C, 90% DOD) |
> 6000 cycles (0.5C, 25 °C, 90% DOD) |
| Design Service Life | 15 years | 15 years | 15 years |
|
Parameter
|
|
|
|
|---|---|---|---|
| Cell Chemistry | LFP | LFP | LFP |
| Rated Voltage | 51.2 V | 51.2 V | 51.2 V |
| Rated Capacity | 314 Ah | 314 Ah | 314 Ah |
| Single-Pack Rated Energy | 16.08 kWh | 16.08 kWh | 16.08 kWh |
| Operating Voltage Range | 44.8-57.6 V | 44.8-57.6 V | 44.8-57.6 V |
| Recommended Charge/Discharge Current | 157 A / 157 A | 157 A / 157 A | 157 A / 157 A |
| Multi-Unit Expansion Method | / | 2-16 units in series | 3-15 units in series |
| Expanded Voltage Range | / | 89.6-115.2 V (2 units) 716.8-921.6 V (16 units) |
134.4-172.8 V (3 units) 672-864 V (15 units) |
| Expanded Energy Range | / | 32.16-257.28 kWh | 48.23-241.15 kWh |
| Communication Interfaces | RS-485, RS-232, CAN | RS-485, RS-232, CAN | CAN |
| Cycle Life | > 6000 cycles (0.5C, 25 °C, 90% DOD) |
> 6000 cycles (0.5C, 25 °C, 90% DOD) |
> 6000 cycles (0.5C, 25 °C, 90% DOD) |
| Design Service Life | 15 years | 15 years | 15 years |
Specifications are subject to change according to product development and market requirements.
